EVniculus

Portable Electric Car Charger 22kW Type 2

Portable Electric Car Charger 22kW Type 2

€399,99 EUR
€399,99 EUR
Sale Sold out
Shipping calculated at checkout.

We can issue a VAT-exempt invoice to EU companies. Please contact us in advance!

Worldwide Shipping

Europe (2-7 working days)

USA (3-9 working days)

Lenght
image host

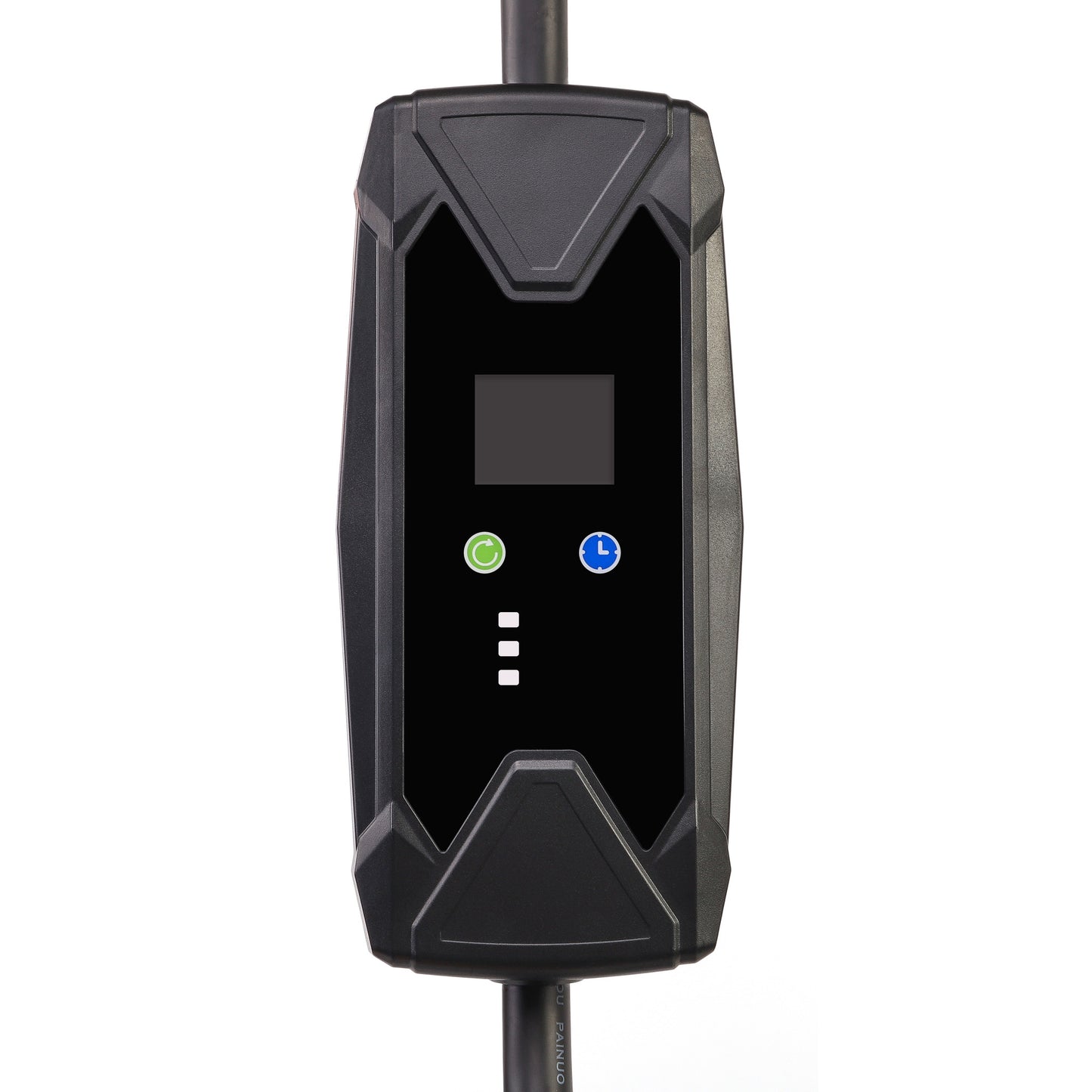

The 22kW Electric Car Charger is our most powerful EV solution. It is capable of fully charging a Renault Zoe with 23.3kW battery in 1h 15m (Have in mind that only certain vehicles are capable of AC charging with 22kW. For support reach us out by phone or email).

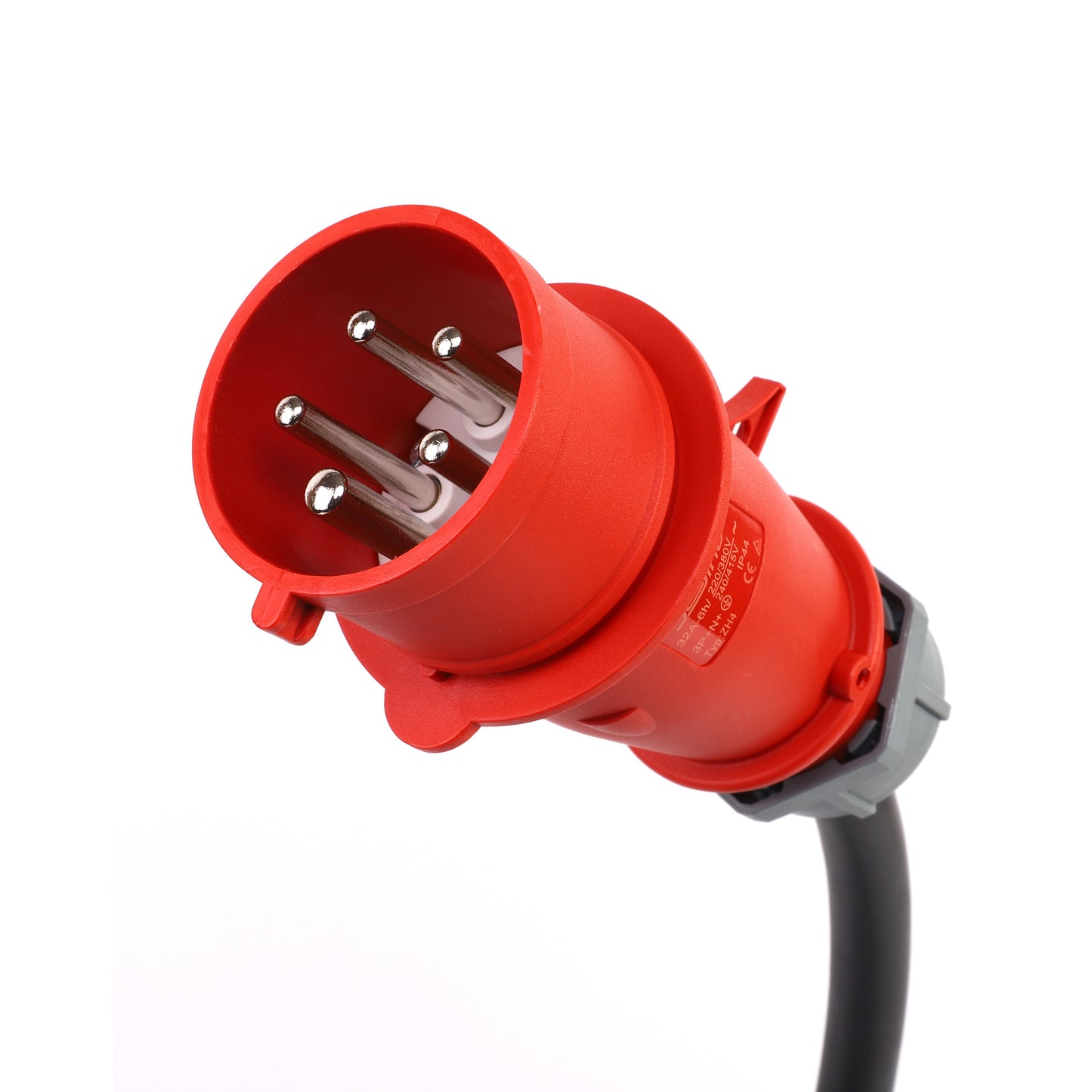

 In order to use this EV charger you need a 3-phase CEE socket.

This portable car charger has CE and TÜV certification ensuring its safe use.

The home charger is equipped with overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheating protection, and waterproof protection. If the temperature of any component reaches over 85°C the charging process will be interrupted instantly.

Made of durable materials this Level 2 charger will last 10 000 plug-ins, falls from heights of 1m, and pressure of up to 2 tones. The current can be changed by a button to 6A/10A/16A/20A/24A/32A. Once you select the current, the unit will automatically set the same current for your next charge.

Our portable charging station is equipped with an LED display providing information about the current voltage, charge, selected current, charging time, charging speed, and charged power in real-time. This EV charger also has a delay timer function which can start charging your car up to 10 hours after plugging it.

Specifications

Material: Thermoplastic, Copper
Type: 2
Weight: 5kg
Wire Gauge: 5G6mm² + 2×0.5mm²
Current: 6A/10A/16A/20A/24A/32A
Input power: 110–250V /380-450V AC
Output power: 22kW
Length: 5m
Insulation resistance: > 1000MD (DC500V)
Terminal temperature rise:< 50K
Housing Fire Rating：UL94V-0

View full details

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
R***T

Bien reçu rapidement , produit conforme à la description? bon fonctionnement pendant l'essai. Très satisfait, je recommande ce produit (réglage de la puissance de charge) et ce vendeur.

2
2***r

Fonctionne parfaitement avec une Renault Zoé. Le chargeur supporte 6/10/16/20/24/32A. Testé en 6A et 16A sur une phase en utilisant deux adaptateurs : 1) Prise standard EU 1P(16A) -> 3P(16A) 2) Prise 3P(16A) -> 3P(32A) Chargeur idéal permettant de charger en 1 ou 3 Phases de 1.38kW(6A*1P*230) à 22kW(32A*3P*230) Très Très Satisfait

N
N***v

Shipping was very fast. Seller is very responsive. Charger is working fine on all currents. Tested on 10A and 16A 1P. The car (VW ID3) recognized the charger without problems. The Idea was to use 32A on 1P - 7 kW and 16A on 3P - 11 kW. This is possible only with this charger.
