Hyundai Ioniq Electric (28 kWh)
3.7 kW7.5 h
7.4 kW4 h
11 kW4 h
22 kW4 h

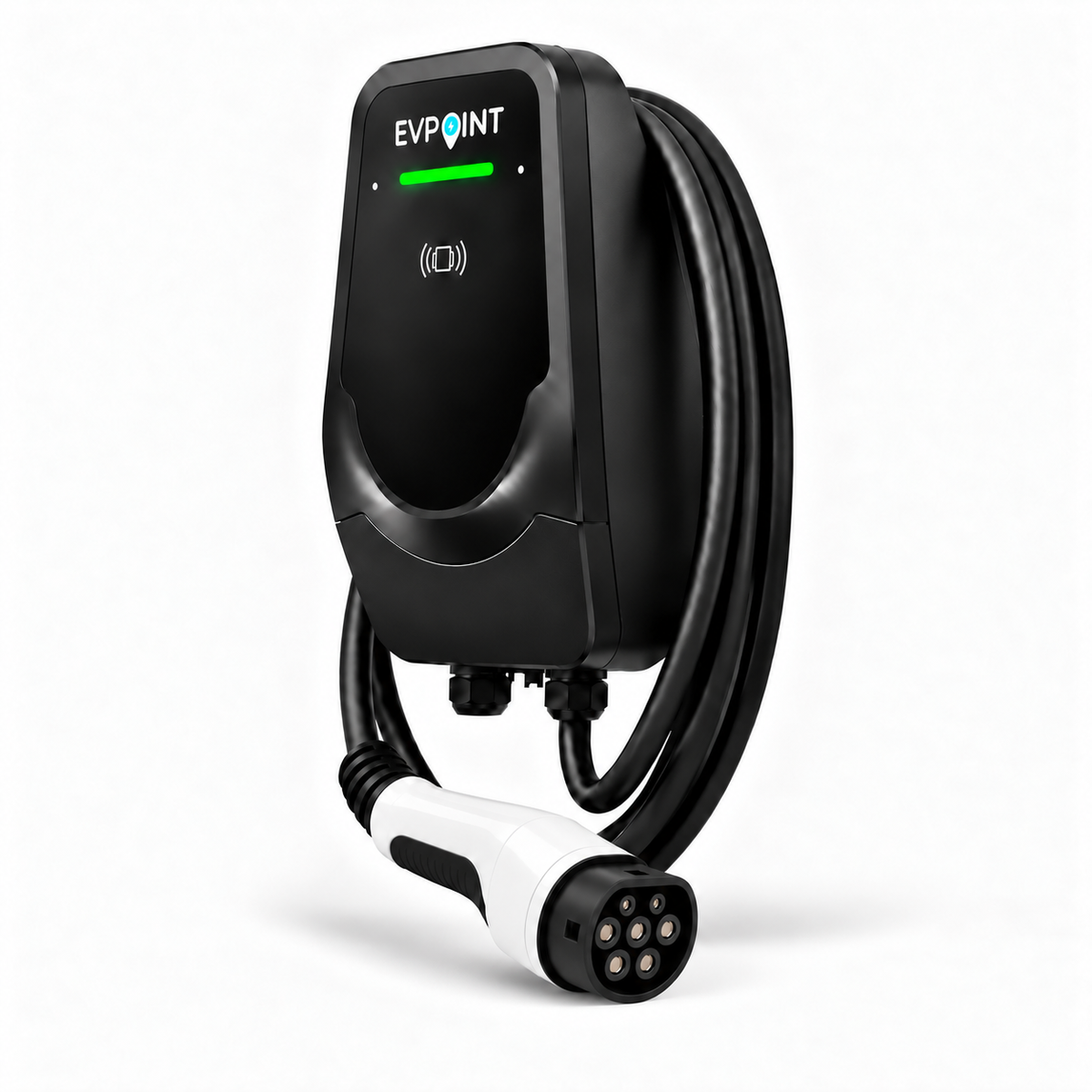

EVPoint EV22 PLUS 22 kW Smart EV Charger – Type 2 Cable
Please provide your VAT number in the cart section if you qualify for a VAT exemption.
Three-phase smart wallbox with a fixed Type 2 cable for AC charging up to 22 kW. Suitable for homes and business parking where the electrical installation allows it.

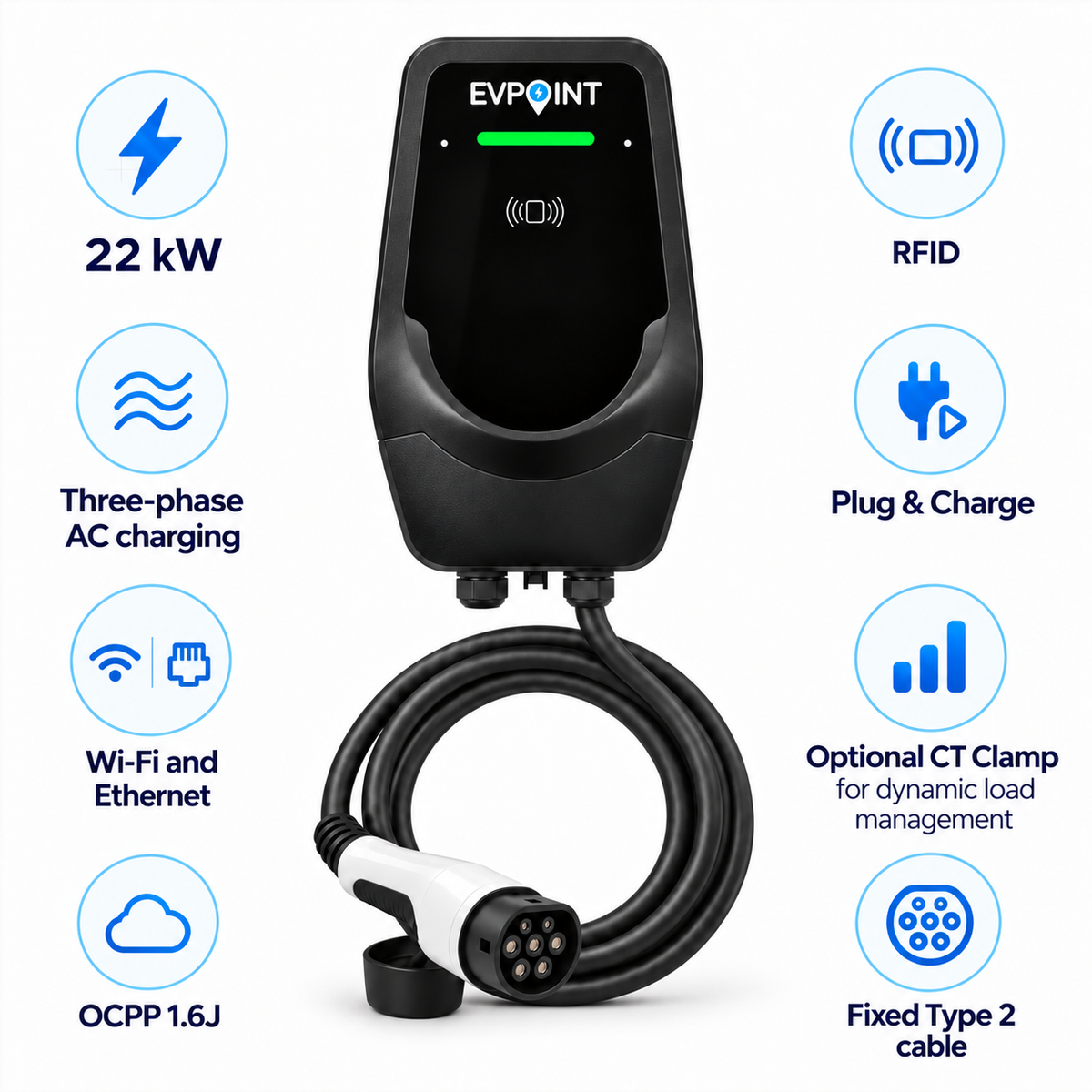

Supports Wi-Fi, Ethernet, OCPP 1.6J, RFID and Plug & Charge. An optional CT Clamp can help with dynamic load management when installed by a qualified electrician.

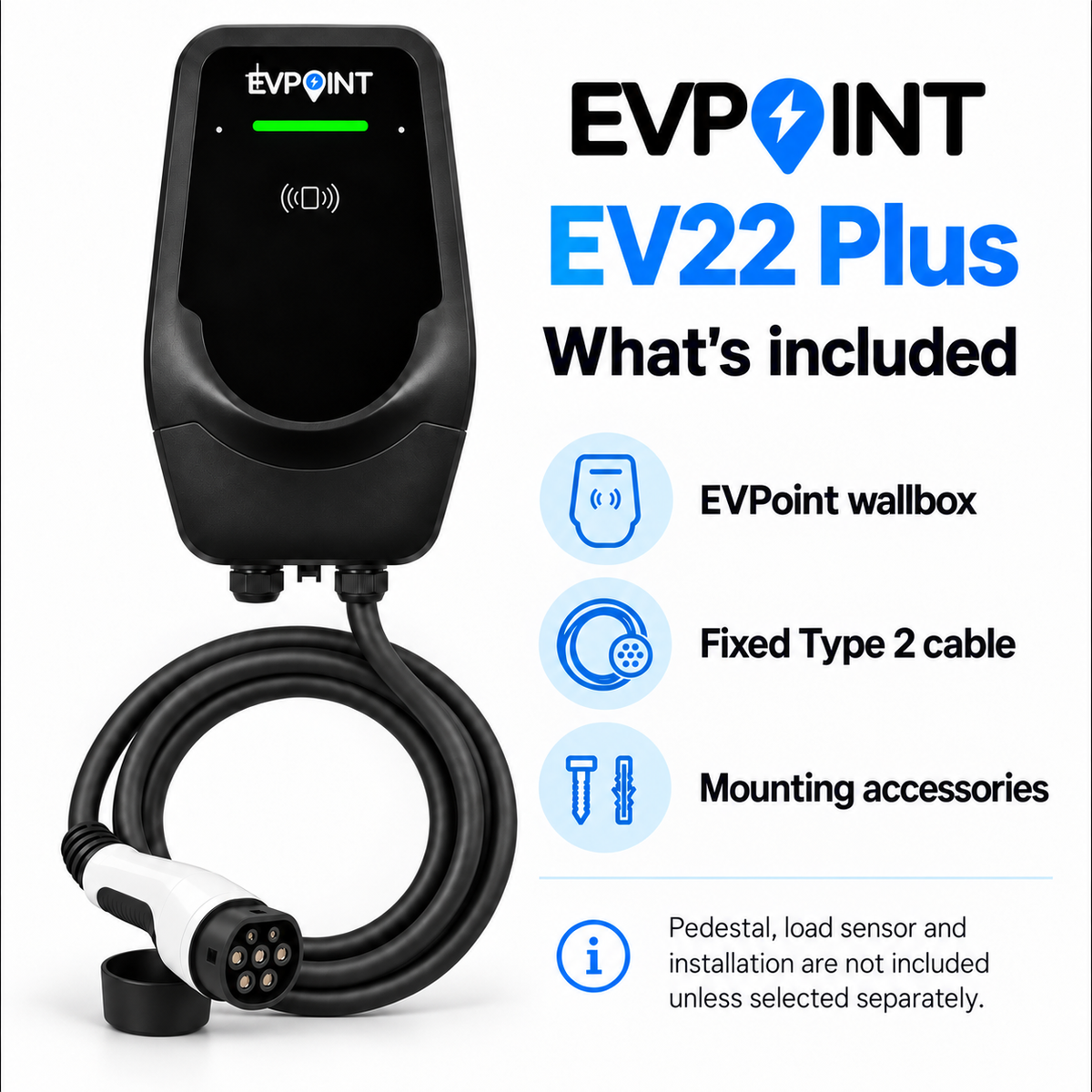

Installation must be done by a qualified electrician. Pedestal, load sensor and installation are not included unless selected separately.
Recommended add-ons
EVPoint EV22 Three-Phase CT Clamp – Dynamic Load Sensor
Angebot €60.00
EVPoint Metal Floor Pedestal for EV22 Charging Station
Angebot €180.00
EVPoint EV22 PLUS 22 kW Smart EV Charger – Type 2 Cable
Angebot €799.00
EVPoint EV22 PLUS
A feature-rich 22 kW AC wallbox
Next-generation AC charging up to 22 kW for homes and public sites — Type 2 for European EVs, with Type 1 adapters for US vehicles.
22 kWOCPP 1.6Three-phaseMade in Bulgaria
Not a typical wallbox
Charging is the baseline. EV22 PLUS adds connectivity, remote control and operator-ready protocols so every session is easier to run and monitor.
01
Always connected
3G/4G, Wi-Fi and Ethernet for live monitoring, remote setup, OTA updates and online diagnostics.
02
EVPoint app
Schedule charging, set energy targets, adjust current and stop sessions from the EVPoint app.
03
OCPP 1.6 ready
Connect to operator platforms for public access, management and customer billing.
04
Built-in web UI
Configure, monitor and diagnose the station from its own local web interface.
Built for home and public use
Use case
At home
- Plug & Charge for everyday convenience
- Schedule sessions for cheaper off-peak tariffs
- Track every kWh from your smartphone
Use case
Hotels, offices, parking & showrooms
- RFID access for authorised users
- OCPP integration with operator platforms
- Ideal for hotels, offices, parking and showrooms
Smart charging control
From the EVPoint app, set when charging happens and how much energy you want — then let EV22 PLUS run the schedule for you.
- Schedule chargingDaily time windows for cheaper overnight tariffs.
- Energy targetChoose minimum and maximum kWh for each session.
- Monitor statusSee when the station is ready and what mode is active.
Power management
Set charging current up to 32 A on three-phase power (22 kW) to match your installation and vehicle — full control from your phone.
- Up to 32 AAdjustable power for three-phase setups up to 22 kW.
- Full controlChange current anytime without opening the wallbox.
Charging insights
Follow live power, energy and session time — then review history to understand home energy use.
- Live statusMonitor every charge and stop or boost when needed.
- HistoryBrowse past sessions with energy, duration and location.
Charge without overloading the grid
With Dynamic Load Management, EV22 PLUS can watch live site consumption and balance charging power across smart stations so the grid is not overloaded and sessions stay running.
Add the EV22 three-phase CT Clamp from Recommended add-ons above.
30 kW
Site limit example
27 kW
Other loads in use — EV22 PLUS reduces charge power
20 kW
Loads drop — EV22 PLUS returns toward full 22 kW
Approximate charge times
Indicative full-charge times at different power levels. Actual results depend on battery state, temperature and the vehicle’s onboard charger.
Hyundai Ioniq 5 (72.6 kWh)
3.7 kW20 h
7.4 kW10 h
11 kW6.5 h
22 kW6.5 h
Peugeot e-208 (47.5 kWh)
3.7 kW13 h
7.4 kW6.5 h
11 kW4.5 h
22 kW4.5 h
Renault Zoe (41 kWh)
3.7 kW11 h
7.4 kW5.5 h
11 kW4 h
22 kW1.5 h
BMW i3 (37.9 kWh)
3.7 kW12 h
7.4 kW6 h
11 kW4 h
22 kW4 h
Škoda Enyaq iV (58 kWh)
3.7 kW18.5 h
7.4 kW9 h
11 kW6 h
22 kW6 h
Mercedes EQE 350+ (90.6 kWh)
3.7 kW29 h
7.4 kW14.5 h
11 kW9.5 h
22 kW5 h
BMW iX M60 (105.2 kWh)
3.7 kW33.5 h
7.4 kW16.5 h
11 kW11 h
22 kW11 h
Safety and status at a glance

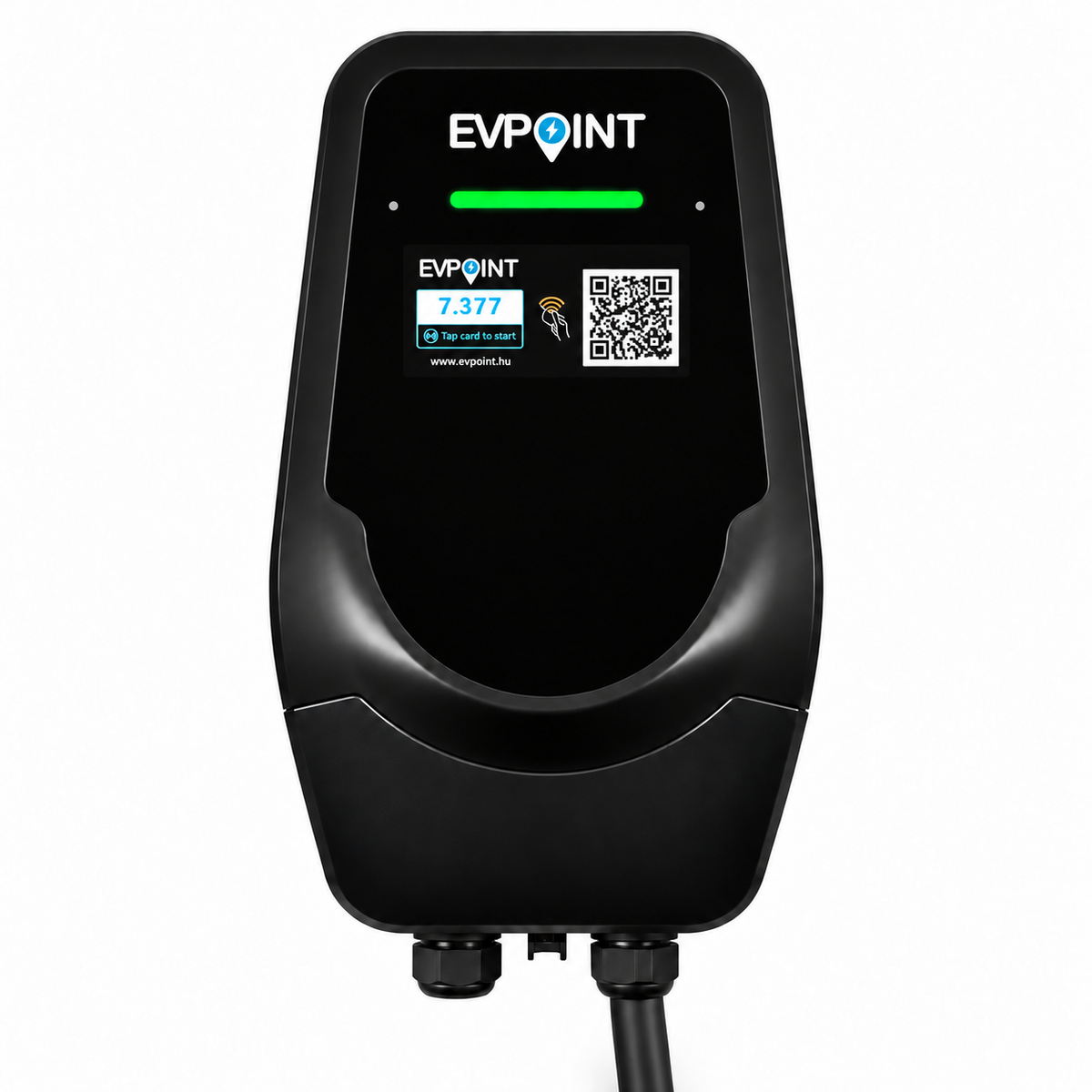

LED status
Colour ring shows ready, charging or fault
Built-in RCD
Residual current protection included
Remote diagnostics
Support can inspect issues over the air
OTA updates
New features and fixes arrive remotely
Faster, safer install
Electronics sit in the front cover. Mount and cable on the empty back plate first — then click the front on. Less risk of damage during installation.
Warranty & support
24 + 36 months warranty. If a unit needs workshop repair, a loaner station can cover the downtime.
Made in Bulgaria
Designed and built in Bulgaria by EVPoint (Daisy Technology group) — decades of electronics manufacturing, focused on EV charging.
EVPoint
Compare EV7, EV22 PLUS and EV22 PRO
Pick the charger that matches your installation and smart features.
|
|
| |
|---|---|---|---|
| Max power | 7.4 kW | 11 / 22 kW | 22 kW |
| Phases | Single-phase | Three-phase | Three-phase |
| Connector | Type 2 cable or socket | Type 2 cable or socket | Type 2 |
| Colour display | No | No | 3.5-inch colour |
| Smart app / Wi-Fi / LAN / GSM | Yes | Yes | Yes |
| Dynamic load (CT clamp) | Optional (1-phase) | Optional (3-phase) | Optional (3-phase) |
| Floor stand / pedestal | Optional EV7 stand | Optional EV22 pedestal | Optional EV22 pedestal |
| Warranty | 5 years | 5 years | 5 years |
