CCS2 to CCS1 fast charge adapter. Everything you need to know

Updated on 08.06.2026

A charging adapter sounds like a small detail until you are standing in front of the wrong charger with a low battery. Then the shape of the connector suddenly becomes the whole story.

This happens more often than people expect. A driver brings a North American EV to Europe. Someone imports a Chevrolet Bolt, Ford Mustang Mach-E, Hyundai Kona Electric, Audi e-tron, or another CCS1-equipped car into a region where public fast chargers use CCS2. The car is ready for DC fast charging, the station has power, the cable is there, but the plug does not match the vehicle inlet.

That is exactly the situation a CCS2 to CCS1 fast charge adapter is built for. It lets a vehicle with a CCS1 port connect to a European CCS2 DC fast charging station, as long as the vehicle, charger, and adapter can communicate correctly.

This article goes through the real details: what CCS1 and CCS2 mean, how the adapter works, what it can and cannot do, how charging speed is affected, and why NACS is now part of the conversation, too.

What is a CCS1 charger?

People often search for a CCS1 charger when they mean a charging station or connector that works with a CCS1 vehicle. Technically, CCS1 is not the charger itself. It is the connector standard used on the vehicle side and on DC fast-charging cables in certain markets.

CCS1 is based on the Type 1, or SAE J1772, AC connector. It adds two extra DC pins below the Type 1 section. The upper part handles AC charging and communication. The lower two-pin DC connector handles direct current for fast charging.

This is why the shape looks like a J1772 plug with a larger lower section. CCS1 is mostly associated with North America and South Korea. Many non-Tesla battery electric vehicles sold in North America between roughly 2015 and 2024 were built with CCS1 ports. That includes popular EV models such as the Chevrolet Bolt, Hyundai Kona Electric, Kia Niro EV, Volkswagen ID.4 in North American specification, Ford Mustang Mach-E, and earlier Audi e-tron models.

A CCS1 vehicle can usually accept AC charging through the Type 1 portion of the port and DC charging through the full CCS1 connector. For home charging, it uses single-phase AC power. For public DC fast charging, it uses the lower DC pins and a high-level communication protocol between the car and the charging station.

That distinction matters because a CCS2 to CCS1 adapter is normally for DC fast charging. It is not a simple home charging adapter, and it should not be treated like a universal plug converter.

What is CCS2 and why is it the European standard?

The question of what CCS2 is comes up often because the connector looks similar in purpose to CCS1 but different in shape.

CCS2, also called Combo 2, is the Combined Charging System version used across Europe and the UK. It is built around the Type 2 AC connector and adds two large DC pins underneath for rapid charging. In simple terms, CCS2 allows the same vehicle inlet to support AC and DC charging in the European system.

A CCS2 charger usually means a public DC charger with a tethered CCS2 cable. These are the chargers found at motorway services, retail parks, urban charging hubs, and high-power charging locations across Europe. A CCS2 connector is the plug on that cable, shaped to fit a CCS2 vehicle inlet.

CCS2 suits the European grid because Type 2 supports both single-phase and three-phase AC charging. That is one of the biggest practical differences from CCS1. In Europe, three-phase AC charging is common in homes, workplaces, and public AC posts. Many vehicles support 11 kW AC charging, some support 22 kW, and a few older or special cases have supported even higher AC power.

DC charging is separate. When a car uses a CCS2 DC fast charger, the current goes through the lower DC pins. The top section still matters for communication, protective earth, and locking, but the main charging power flows through the DC part of the connector.

So CCS2 is not only a European plug shape. It is part of the charging infrastructure that most electric vehicle drivers in Europe rely on for longer journeys.

The combined charging system: both AC and DC in one inlet

The combined charging system was created to reduce connector confusion. Instead of one port for AC charging and another for DC charging, the same vehicle inlet can support both AC charging and direct current fast charging.

That does not mean the same pins do everything. The upper part of the connector handles AC-related functions and communication. The extra DC pins carry high current during fast DC charging. The car and charger decide what type of charging is happening before real power begins to flow.

With AC charging, alternating current comes from the grid or a home charger. The car’s onboard charger converts it into DC power for the battery. With DC charging, the conversion happens inside the charging station, and the vehicle receives direct current more quickly.

This is why DC fast charging equipment is larger and heavier than a home charger. It contains power electronics, cooling, control systems, and safety hardware that a simple AC wallbox does not need.

The important point for adapters is this: a CCS2 to CCS1 fast charge adapter has to carry the right signals and the right DC power path. It is not enough for the two ends to fit physically. The communication protocol, lock behavior, temperature protection, current rating, and voltage rating all matter.

CCS1 vs CCS2: the key differences

The phrase CCS1 vs CCS2 is often treated like a simple plug comparison. The shape is the obvious difference, but it is not the only one.

CCS1 uses the Type 1/J1772 upper connector. CCS2 uses the Type 2 upper connector. Both add two extra DC pins for fast charging. Both belong to the same wider Combined Charging System idea. Both can support DC fast charging. But they were built around different electrical markets.

Here is the practical comparison:

CCS1 and CCS2 adapters: what do they actually do?

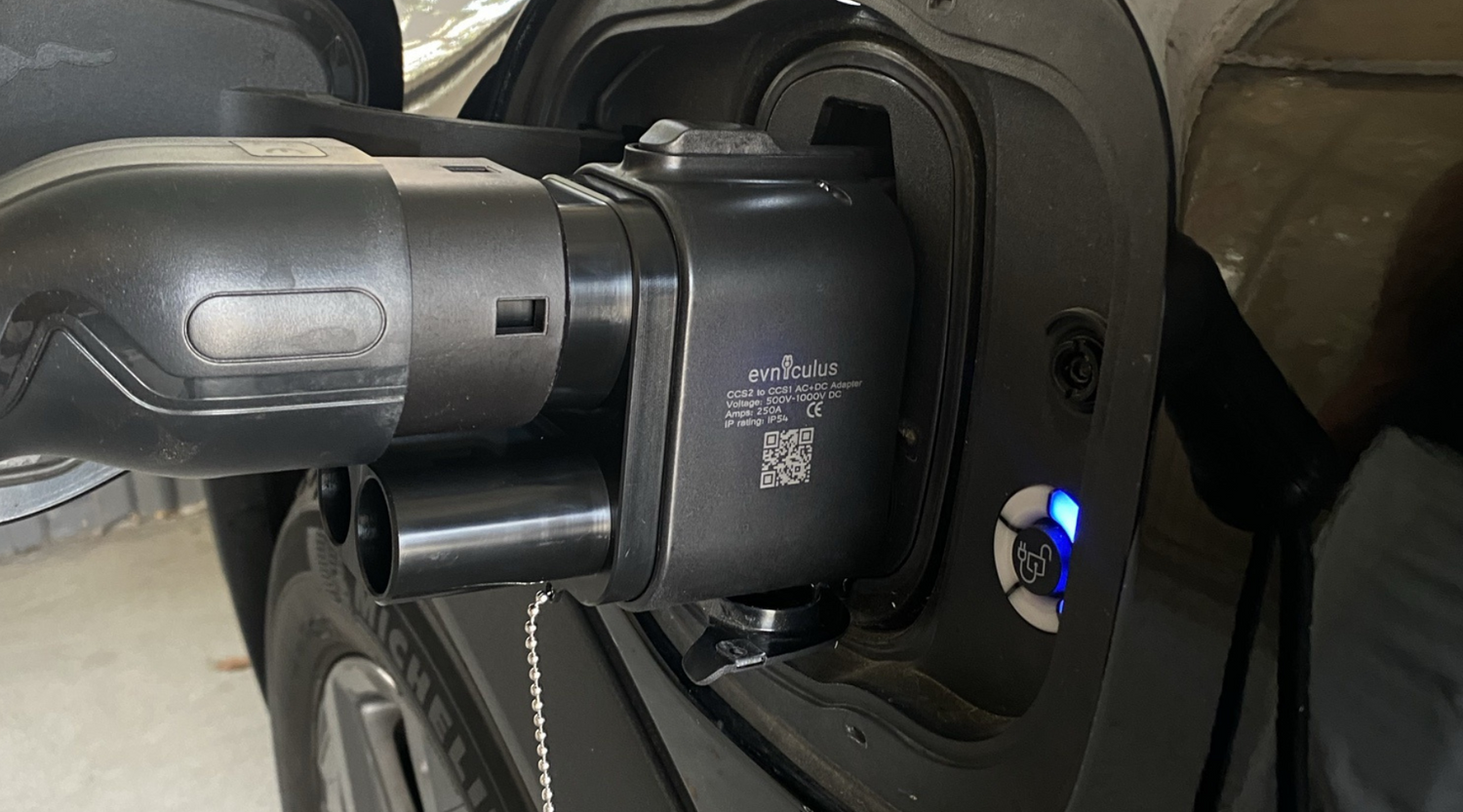

A CCS2 to CCS1 adapter sits between a European CCS2 charging cable and a vehicle with a CCS1 port. On one side, it accepts the CCS2 connector from the charging station. On the other side, it plugs into the CCS1 vehicle inlet.

The adapter must carry the DC power through heavy conductors. It must route the communication pins correctly. It must preserve the protective earth. It must allow the connector lock to behave safely. It must manage heat. It must be rated for the voltage and current that the charging session may request.

A good fast-charge adapter is not a passive travel plug in the everyday sense. It is a high-current component used in electric vehicle charging. That is why technical specifications matter.

Typical high-quality CCS2 to CCS1 adapters may be rated up to 1000 V DC and high current levels such as 250 A, 300 A, or 500 A, depending on the product design. Some are advertised for charging power up to around 250 kW, but that number should always be read carefully. The actual charging speed depends on the weakest part of the chain: the car, charger, adapter, cable, temperature, and battery condition.

If the car can accept 80 kW, the session will not become 250 kW because the adapter is rated higher. If the station is limited to 50 kW, the adapter will not create more power. If the adapter overheats or the charger reduces current, the session will slow down.

Charging speed: What changes with an adapter?

The heading number on a charger is not a promise. It is a ceiling. Charging speed is negotiated during the charging process.

When a CCS1 vehicle connects to a CCS2 station through an adapter, the vehicle and charger still need to communicate. The car requests voltage and current. The station checks what it can provide. The battery management system adjusts charging according to state of charge, temperature, and limits. The adapter must be capable of safely carrying the requested power.

In a good setup, the adapter should not be the main bottleneck. But in the real world, several things can reduce speed. A cold battery can charge slowly. A battery above 70% or 80% will usually taper. A charger may be load-sharing with other vehicles. A site may have grid limitations. A cable or adapter may reduce current if heat builds up. The vehicle may have a lower peak DC charging capability than the charger.

This is why drivers should not judge an adapter solely by a single maximum kW figure. Look at voltage, current, thermal protection, build quality, and whether the adapter is designed for fast DC charging on the vehicle you actually drive.

For many electric vehicle drivers, the adapter’s real value is not maximum speed. It is access. It lets a CCS1 vehicle use the European CCS2 public charging infrastructure that would otherwise be unavailable.

Using a CCS2 to CCS1 adapter at a charging station

A charging station can look ready to use, but there are a few things worth checking before connecting a CCS2-to-CCS1 adapter.

First, check that the station is DC fast charging, not AC only. The adapter is meant for CCS2 DC charging cables. A public AC Type 2 socket is a different case.

Second, check the cable and plug condition. If the connector looks damaged, cracked, burnt, or loose, choose another charger. Fast charging involves high power. A bad connector is not a small issue.

Third, connect carefully. Usually, the CCS2 charging cable connects to the adapter, and the adapter connects to the CCS1 port on the car. The sequence can vary by adapter, but the connection must be firm before the session starts.

Fourth, watch the first minute. Most communication failures happen at the beginning. If the charger cannot authenticate, lock, negotiate, or start DC charging, the session may fail quickly. Sometimes restarting the charger or reconnecting helps. Sometimes the station and car simply do not communicate well through that equipment.

Fifth, do not pull on the cable during charging. These cables are heavy. The adapter adds length and weight between the station connector and the car’s port. If the cable hangs at a bad angle, it can create strain on the vehicle inlet. A simple habit helps: park close enough so the cable reaches naturally without tension.

Backward compatibility and what an adapter cannot fix

The phrase backward compatibility can be misleading in EV charging.

A CCS2 to CCS1 adapter can make one physical connection possible. It does not guarantee that every station, every car, and every payment system will work perfectly. Charging still depends on software, communication, authorization, and safety checks.

It also does not convert AC charging standards. A CCS2 DC fast-charge adapter does not give a CCS1 vehicle full European Type 2 AC charging capability. For home charging or public AC charging, a driver may need a different Type 2 to Type 1 AC cable or adapter, depending on the car and setup.

It does not raise the car’s maximum charging rate. A Chevrolet Bolt, for example, will not charge like a 250 kW performance EV because an adapter is rated for higher power. A Hyundai Kona Electric will still follow its own charging curve. An Audi e-tron may perform well on high-power chargers, but only within its battery and thermal management limits.

It also does not solve every regional issue. Imported EVs can have navigation, app, warranty, charging account, and software differences. The adapter handles the connector problem. It does not make the whole car native to another market.

AC and DC: why the adapter is mainly for fast DC charging?

The phrase AC and DC appears everywhere in EV charging, but it is worth slowing down here because it prevents expensive mistakes.

AC charging is what most people use at home. The charger supplies alternating current. The onboard charger in the car converts it into DC for the battery. With CCS1 cars, this usually happens through the Type 1 portion of the port. With CCS2 cars, it happens through the Type 2 portion.

DC charging is what happens at fast public stations. The station supplies direct current directly to the battery through the extra DC pins. The onboard charger is mostly bypassed.

A CCS2 to CCS1 fast-charge adapter is normally built for DC charging. It maps the CCS2 fast-charging connector to the CCS1 vehicle inlet so the car can use compatible European DC charging infrastructure.

If a driver needs home charging in Europe for a CCS1 vehicle, the correct solution may be a Type 2 to Type 1 AC cable, not a CCS2 to CCS1 DC adapter. These are different tools for different jobs. Confusing them is one of the most common mistakes.

Technical specifications worth checking before buying

A charging adapter should be chosen by specifications, not by looks. The first thing to check is the voltage rating. Many modern DC fast-charging systems operate at high voltage, and newer EVs may use an 800 V battery architecture. A common rating for serious CCS adapters is up to 1000 V DC.

Current rating is next. An adapter rated for 200 A will behave differently from one rated for 300 A or 500 A. Higher current support can help at high-power charging stations, but only if the charger and vehicle also support it.

Power rating is useful, but only as a result of voltage and current. A 250 kW claim sounds strong, but it depends on operating conditions. Power is not only a marketing number. It is the product of voltage and current, controlled by the car and charger.

Temperature protection matters because high current creates heat. The adapter should use heat-resistant materials, solid contacts, and a design that can handle repeated fast charging. Some adapters include thermal sensors or temperature-based protection.

Mechanical fit matters too. The connector should lock securely, sit firmly in the CCS ports, and avoid unnecessary movement. A loose fit can lead to communication errors or heat.

Ingress protection is useful for public charging in rain, snow, and dust. Many adapters mention IP ratings, but the driver should still avoid water pooling around connectors.

Finally, certification and testing matter. With high-power DC charging, a cheap, unknown adapter is not a bargain. It is a risk.

How charging infrastructure affect the charging experience?

The charging infrastructure around the adapter matters as much as the adapter itself. Europe has a strong CCS2 network, but not all public stations are equal. Some older rapid chargers provide 50 kW. Many modern hubs provide 150 kW or more. Some ultra-rapid locations offer 300 kW or 350 kW chargers. The best station for your car is not always the one with the biggest number on the screen.

A CCS1 car using an adapter may be limited by the car’s DC charging capabilities before it is limited by the station. If the vehicle peaks at 77 kW, a 350 kW charger will not change that. It may still be a good stop if the station is reliable, available, and easy to access.

Charging infrastructure providers also influence the experience through payment systems, uptime, cable reach, parking layout, app stability, and maintenance. A reliable 150 kW charger with four open bays may be better than one 350 kW charger hidden behind a payment problem.

For imported EV owners, this is especially important. The adapter solves the connector mismatch, but good route planning still matters. Look for charging networks with recent user feedback, multiple stalls, and CCS2 DC support.

Charging networks, NACS and the North American transition

The topic becomes more complicated because North America is moving toward NACS.

A NACS to CCS1 adapter is used when a CCS1 vehicle needs to connect to a NACS-style fast-charging plug, most commonly in the context of Tesla Supercharger access or newer NACS-equipped charging networks. But access is not decided by hardware alone. The vehicle must be approved, the charger must support the session, the payment flow must work, and the adapter must be authorized for that use.

A CCS1 to NACS adapter describes the opposite direction: a NACS-equipped vehicle connecting to CCS1 infrastructure. This can matter as new NACS vehicles enter a market where many existing public DC stations still have CCS1 cables.

NACS is smaller than CCS1 and uses a different physical design. It can support AC and DC through the same compact connector format. That is one reason many North American EV manufacturers have moved toward it for future vehicles.

Still, NACS does not erase CCS1 overnight. Many CCS1 vehicles are already on the road. Many public chargers still use CCS1. Many drivers will need adapters during the transition.

Europe is different. CCS2 remains the dominant standard in the European Union and the UK. Tesla Superchargers in Europe use CCS2. Most new electric cars sold in Europe use CCS2 for DC fast charging.

So the connector story depends heavily on the region. North America is shifting. Europe is mostly settled around CCS2. South Korea has used CCS1 in some vehicles. Other regions may mix European, North American, Japanese, or Chinese standards.

This is why global charging advice often fails. A connector solution that makes sense in Canada may be irrelevant in France. A European standard may not help a North American import without the right adapter.

CCS ports and vehicle examples

When checking CCS ports, do not rely only on the model name. The same model can have different charging hardware depending on the market and year.

A Hyundai Kona Electric sold in North America may have CCS1. A European Kona Electric may have CCS2. An Audi e-tron in Europe normally uses CCS2, while a North American-market Audi e-tron uses CCS1. A Chevrolet Bolt is usually a CCS1 case. Tesla models vary strongly by region and production year. Some older or imported electric cars may create unusual combinations.

This is why the physical port on the vehicle is the first thing to inspect. Look at the inlet, not just the badge on the car. A CCS1 port has the Type 1/J1772 shape at the top and two DC pins underneath. A CCS2 port has the Type 2 shape at the top and two DC pins underneath. If the vehicle has CHAdeMO, it will use a different large round DC connector and will not work with CCS1 or CCS2 adapters unless a very specific and approved conversion system exists.

For most EV owners, the question is simple: does the car have CCS1, CCS2, NACS, CHAdeMO, or GB/T? Everything else follows from that.

Choosing the right charging adapter

A charging adapter should match the car first, not the charging station first. Start with the vehicle inlet. If the car has CCS1 and you want to use European CCS2 DC fast chargers, you need a CCS2 to CCS1 DC fast charge adapter. If the car has CCS2 and you are in a CCS1 region, the adapter direction is different. Direction matters because the male and female ends are not interchangeable.

Then check the use case. Are you trying to use public DC fast charging, or are you trying to charge at home from AC? If it is AC, a CCS fast-charge adapter may be the wrong product. If it is DC, an AC cable will not help.

Next, check the technical specifications: voltage, current, maximum supported power, temperature protection, locking system, ingress protection, certification, and compatibility notes.

Finally, check the vehicle itself. Some cars are sensitive to charger communication. Some networks are stricter than others. Some adapters work well with common models but may not support every vehicle equally. If the product page lists compatibility, read it carefully. If it does not mention your model, ask before buying.

At EVniculus, we treat adapter choice as a compatibility question before anything else: port direction, charging type, power rating, safety design, and the actual car the driver plans to charge.

How to use the adapter without damaging the car or charger?

Park close enough to the charger so the cable does not hang heavily from the car. Inspect the station connector. Inspect the adapter. Check for dirt, moisture, cracks, or signs of heat damage. Connect the adapter firmly. Make sure the vehicle port and connector are aligned. Start the session through the charger screen, app, RFID card, or payment terminal.

Once charging begins, check the first few minutes. If the session starts normally and the charging speed rises, the car and charger are communicating. If the session stops repeatedly, do not force it. Try another charging point or network.

During charging, avoid touching the connector unnecessarily. Do not place weight on the adapter. Do not let the cable twist or pull sideways. High-power DC charging already creates heat. Mechanical stress makes things worse.

When the session ends, stop charging through the charger or vehicle first. Wait for the connector to unlock. Then disconnect carefully and store the adapter in a dry case. A good adapter should make charging feel ordinary. If it feels improvised, something is wrong.

A clearer way to think about CCS1 and CCS2

The easiest way to understand CCS1 and CCS2 is to separate the region from the charging function. CCS1 is the North American-style Combined Charging System connector based on Type 1/J1772. CCS2 is the European-style Combined Charging System connector based on Type 2. Both can support AC and DC charging through the vehicle inlet. Both use extra DC pins for fast charging. Both rely on communication between the car and charger.

The adapter does not change the identity of the vehicle. It simply allows a CCS1 vehicle to use compatible CCS2 DC fast-charging infrastructure, or the reverse when the adapter is designed in the other direction.

For drivers with imported electric vehicles, that can be the difference between a stressful charging experience and a normal one. It gives access to more public stations, reduces range anxiety, and makes the car easier to live with in a region where the native connector standard is different.

The important part is to choose the right direction, the right rating, and the right product for the vehicle. In fast charging, close enough is not enough. The connector has to fit, the communication has to work, and the adapter has to carry the power safely.

FAQ

Can I use a CCS2 to CCS1 adapter for home charging?

Usually no. A CCS2 to CCS1 fast charge adapter is normally designed for DC fast charging. For home charging or public AC charging, a CCS1 vehicle in Europe may need a Type 2 to Type 1 AC cable or adapter.

Does a CCS2 to CCS1 adapter reduce charging speed?

A good adapter should not be the main limit if it is rated correctly. In real use, charging speed depends on the vehicle, charger, battery temperature, state of charge, cable, adapter rating, and charger network behavior.

Is CCS1 used in Europe?

CCS1 is not the European standard. Europe mainly uses CCS2 for DC fast charging and Type 2 for AC charging. CCS1 appears in Europe mostly on imported North American or South Korean vehicles.

Is CCS2 better than CCS1?

CCS2 is better suited to European charging infrastructure because it supports the Type 2 system and three-phase AC charging. For DC fast charging, both CCS1 and CCS2 can support high power, but real performance depends on the car and charger.

Can a CCS1 car use all CCS2 public stations with an adapter?

Not always. The station must be a compatible DC fast charger, the adapter must be correctly rated, and the vehicle and charger must communicate successfully. Payment and network rules can also affect access.

What is the difference between CCS1 and NACS, and NACS to CCS1?

A NACS to CCS1 adapter lets a CCS1 vehicle connect to a NACS-style charging cable, where supported. A CCS1 to NACS adapter lets a NACS-equipped vehicle connect to CCS1 infrastructure. Direction matters, and access still depends on vehicle and network approval.

Do CCS adapters work with CHAdeMO connectors?

No. CHAdeMO is a different DC fast-charging standard with a different connector and communication system. A CCS1 or CCS2 adapter does not turn a CHAdeMO station into a CCS station.

What power rating should I look for in a CCS2 to CCS1 adapter?

Look for voltage and current ratings that match high-power DC charging, such as up to 1000 V DC and a current rating suitable for the chargers you plan to use. Also check thermal protection, locking, build quality, certification, and vehicle compatibility.

Can I use a CCS2 to CCS1 adapter on a Tesla Supercharger in Europe?

European Tesla Superchargers use CCS2 connectors, but access depends on the vehicle, station type, Tesla’s network rules, and whether the site is open to non-Tesla vehicles. A connector adapter alone does not guarantee charging access.

Why does my charging session fail even when the adapter fits?

The fit is only one part of the process. The car and charger must communicate, the connector must lock, the charger must authorize the session, and the adapter must carry signals and power correctly. If any part fails, charging may not start.
